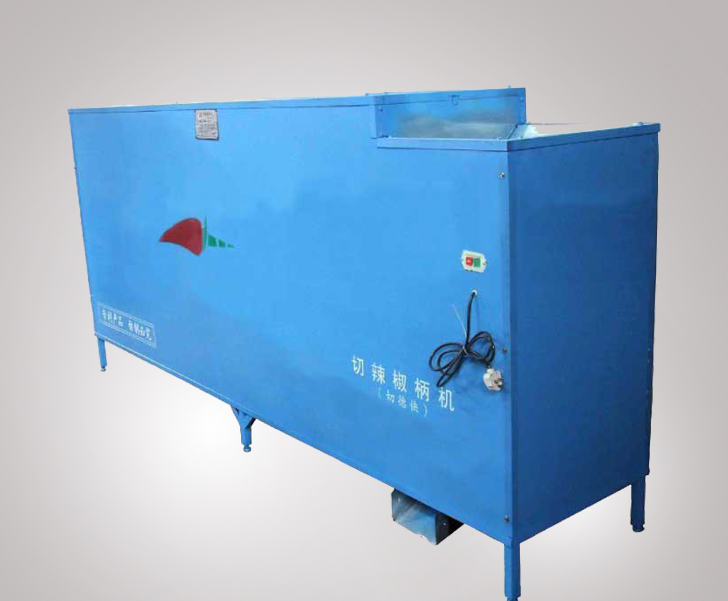

Chili Stem Cutting Machine

chili stem cutter 1

Chili steam cutting machine Introduction:
1.BCHS Chili Machine is a special machine to remove red chili’s stem. Chili Stem Cutting Machine is a patent chili cutting machine to cut pepper’s stem.
2.Chili Stem Cutting Machine resolved above problem with high efficiency and low power consumption. Also Chili Stem Cutting Machine can be used to cut Chinese anise stem and string bean stem.
3.Chili Stem Cutting Machine is an ideal machine for chili processing factory to cut fresh chili stem or dry chili stem.
4.We can supply the different material construction, such as carbon steel, half stainless steel and whole stainless steel.
before and after



Item Capacity(according to dry chili)
BCHS-60 60kg/h
BCHS-120 120kg/h
BCHS-180 180kg/h
BCHS-230 230kg/h
BCHS-280 280kg/h
BCHS-350 350kg/h
BCHS-500 500kg/h

Technique Parameters:

Name Chili Stem Cutting Machine
Model BCHS-120
Size 2.81M*0.59M*1.3M
Power 1.5KW
Current 9.57 A
Voltage 220 V /50Hz
Speed 1400 r/m
Net Weight 238 KG

Chilli stem cutter work theory:
This machine configured with a roller drum, the surface of the drum full of small round holes, when the chili’ stem falls into the hole, there is blade outside the drum will cut those stems off. (The similar working principle with SHAVER.)

Chilli Stem Cutting Machine Working Video:
