onion peeling machine

Home » Tags » onion peeling machine
Onion Processing Equipment Delivered to Poland and Korea Last week, Bidragon onion peeling line had been shipped to Poland by loading into FCL containers. This is a semi-automatic continuous processing line. With automatic feeding machine, onions are conveyed to two top-tail cutting machines, which operated by two workers. Experiencing sorting process, clean and peeled onions without top and tail will be met the eye.

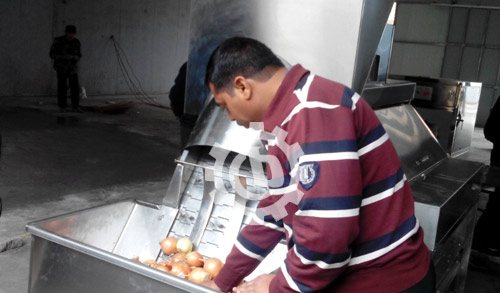

Onion Peeling and Root Cutting Machine Running In India The BOP-3 onion peeling machine and two sets of BOC-1 onion root cutting machine in India customer workshop.Their onion diamter is from 40-80mm, can be done in one onion peeler and onion top tail cutter.

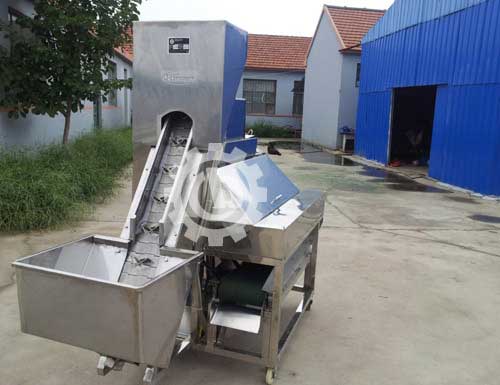

Why Putting One by One Onion on Onion Ends Cutter Putting one by one onion on onion ends cutter by hand is really a work, can we have some easier alternative? Because to ensure onion ends cutting machine good cutting effect, it really need one workers to help adjust each onion position, there can be a lifting conveyor with hopper to convey up each onion , and then it will be a little easier for workers just adjust position, no need to put on one by one.
Onion End Cutting Machine Putting one by one onion on onion ends cutter by hand is really a work, can we have some easier alternative? Because to ensure onion ends cutting machine good cutting effect, it really need one workers to help adjust each onion position, there can be a lifting conveyor with hopper to convey up each onion , and then it will be a little easier for workers just adjust position, no need to put on one by one.
Can the onion root cutter machine process different size of onions automatically? Yes, this onion root cutting machine is designed automatically cutting the top and tail of each coming onion from the convey belt. The blades will be automatically adjust the gap, and this not means it can process each size, it has some range limit, such as usually ok for one breed of onion,30-50mm,60-100mm,80-120mm,etc.
Semi Automatic Onion peeler This semi automatic onion peeler machine should be equipped with an air compressor. Because of the strong air flow produced by air compressor, the cyclone peels off skin of onions smoothly, with low damage rate. It is suitable for those food processing industries. Capacity: 150-200KG/h(6-10 seconds peel one onion) Dimension:600X600X700mm Net Weight:50KG Power of Peeling: 100W Air Compressor Required: 7.5KW

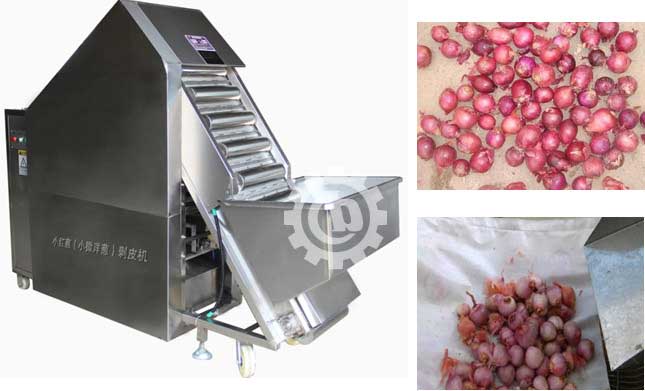

Small Shallot Peeling Machine Small Onion Peeling Machine 1, The machine uses automatic mechanized operations, simply send the onion into the hopper, conveyor machine can transport to the onion peeling machine, the device will be automatic peeling. 2, Machine peeling power is large, regardless of onion skin thick or thin, tight or loose. Even refrigerated onion peel can be done at one time. 3. The special design of the aircraft skin way to make peeling, the onion without injury. 4, The machine high capacity per hour can be achieved around 500KG. 5 , The machine can be matched with other machines such as root cutting machine , slicer , dicer , Dryers and other supporting components automated assembly line onion processing equipment Specifications: Machine specifications Model BSP-1 Applied Small onion 25-40mm Capacity Around 500kg/h Power 1.5KW Needed air compressor air pressure:0.8-1.0Mpa, Air capacity:6-8 CBM/M3 Voltage 380V, 50HZ, 3 Phase Dimension 2550*850*1800mm Weight 350kg Small Shallot Peeling Machine Working Video:
Analog Hand Onion Peeling Machine Analog Hand Onion Top Tail Cutting and Peeling Machine “Analog hand” onion peeling machine as its name suggests, is to imitate a human hand movements on the full range of peeling the onion , the realization of the onion peeling without damage technology. The machine cleverly designed novel, coherent action convergence , non-stop delivery of onion peeling during the process. Analog Hand Onion Peeling Machine Features: 1.This machine no need onion grading, suits to certain range of onion size , does not matter for onion size, wet or dry , breeds , can perfect peeling. 2. Peeling automatically, one-time auto-complete , continuous work uninterrupted . 3. ” cortical control ” on the machine can be freely controlled depth peeling level , just peel the dry skin and then peel second layer of skin or the third layer of skin perfectly. 4. Automatic identification equipment of onion size resection institutions 5 , The machine uses no knife to peel , peel the onion without marks, no damage, perfect appearance. 6 , High efficiency, equipment by one -man operation, one hour can produce around 2700 pieces onion of finished product .
Onion Concave Cutting Peeling Machine “Concave type of onion peeling root cutting machine” is the Hong Kong International Vegetable machinery research developed successfully, can not only remove the onion root as concave type, it can also peeling the onion after cut head flatly and concave remove root, root cutting and onion peeling clean, no damage. They have authorized our production factory to produce this machine. Onion Concave Cutting Peeling Machine Features: 1, the machine uses no knife to peel, no damage. 2, root cutting and skin peeling automatically and one time complete, peeling clean 3, the machine is equipped with automatic identification of onion size adjustment function, whether big or small onion, can be cut with a minimum amount of resection of the flat and concave cut. 4, the machine is equipped with a flat and concave cutting adjustment mechanism, can adjust the amount of resection. 5, the output is high: the machine can produce onion around 1.5-3 tons per hour. Technique Parameters: Model BCP-2 Dimension 3000*800*1400mm Voltage 220V/380V,single phase Cutting Knife 4 pieces Capacity 106 pieces/minute Material 304 stainless steel Air compressor Air capacity 3M3/min, air pressure 0.8-1.0Mpa

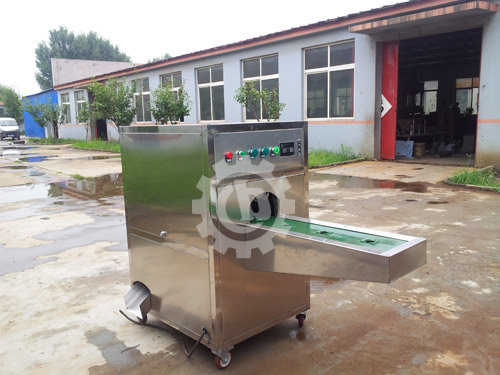

Industrial Automatic Onion Root Cutting Machine The capacity of this onion peeling machine is around One ton per hour, this type machine can identify the onion size automatically and adjust the onion’s head and end cutting position, low processing cost and high processing efficiency. BOC-1 onion peeling machine is the most advanced onion processing equipment with big production in the world,no special requirements in the size,dry or wet onions,or area. In any states, the onions can be peelled and cut in one-time. And it peels clean, no damage. This kind of machine has been widely used in vegetable processing industry, and it mainly has the following features: 1. The onions need not be classified. Without the demand in size, dry or wet, or the depth and firmness of onions. It can perfect cut them. 2. Automation cutting, finished one time, and cutting clean, no damage. 3. The equipment without the design of wearing parts, the service life is long, cost-effective and efficient. 4. 304 stainless steel body and shell, in line with international health standard. Main Technical Parameters Power supply: 380V,50HZ Power: 1.5Kw Output: 1000~1500kg Weight: 116kg

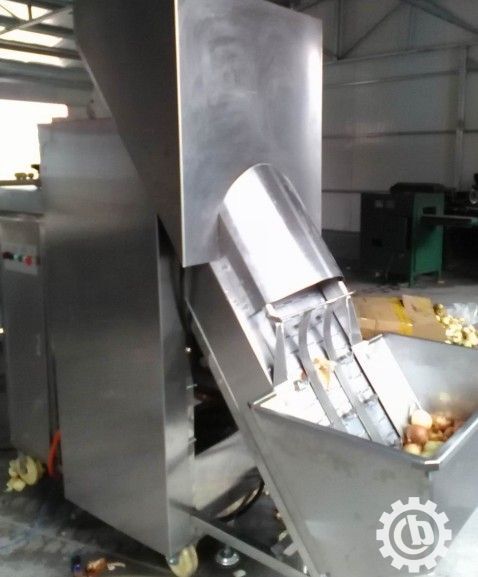

Onion Peeling Machine Onion Peeling Machine Application To all kinds of onions (30-50mm,or 60-120mm), no need to grade onions, no requirement to onion’s original place, applicable to both dried and fresh onions. Features 1.Perfect peeling quality 2.Full automatic, no spoilage to onions, easy operation and high peeling rate more than 95% 3.Stainless steel, no pollution to the onions. 4.Complete dry peeling 5.Hygienic design (easy to clean and disinfect) 6.Low energy and air consumption, Big handling capacity 7.Simple design and convenient usage, adopts food grade 304 stainless steel chain automatically feeding machine. Saving labor and healthy instead of manual processing onion. 8.Nice appearance, safe and reliable usage, all the components of materials meets the standards of PRC (GB/T-1997). 9.Adjustable at peeling skin layers Automatic Onion Peeling Machine Specifications   Model Capacity Power Weight Dimension air pressure& capacity BOP-1 1 onion/second 1.5KW 248KG 2100*830*1800mm 0.8-1.0Mpa,2-3M3/Minute BOP-2 2 onion/second 1.5KW 280KG 1950*1100*1950mm 0.8-1.0Mpa,4-6M3/Minute BOP-3 3 onion/second 1.5KW 320KG 2600*1200*1800MM 0.8-1.0Mpa,7-8 M3/Minute
Onion Peeling Machine Component BOP series onion peeling machine is the advanced onion processing equipment with big production,has won patent . This kind of onion peeler machine has been widely used in vegetable processing industry, and the onion skin remover constituted by the following parts. 1. Loading device Loading device is can convey the onions by stainless steel conveyor. 2. Broken skin device Broken skin device can choose broken thefirst or the second skin of the onion. 3. Peeling device It composed by nozzles and rotary roller. 4. Finished onions transportation The skinned onions move on the conveyor to the specified location. 5. Waste transportation The waste fell on rubber conveyor, and it conveys the waste to the basket.
